材料組合：
密封面：石墨，反應(yīng)碳化硅，無壓碳化硅，碳化鎢
輔助密封：柔性石墨
彈簧及金屬件：304,316,AM350, HAST.C,In718,Ti

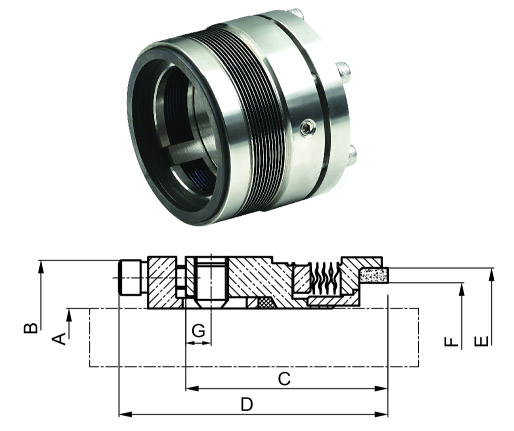

| Size A | B | C | D | E | F | G |
| 0.75 | 1.625 | 1.687 | 2.312 | 1.438 | 1.238 | 0.188 |
| 0.875 | 1.75 | 1.719 | 2.343 | 1.565 | 1.365 | 0.188 |
| 1 | 1.875 | 1.719 | 2.343 | 1.719 | 1.519 | 0.188 |
| 1.125 | 2 | 1.75 | 2.375 | 1.845 | 1.645 | 0.188 |
| 1.25 | 2.125 | 1.75 | 2.375 | 1.97 | 1.72 | 0.188 |
| 1.375 | 2.25 | 1.844 | 2.468 | 2.095 | 1.845 | 0.25 |
| 1.5 | 2.375 | 1.875 | 2.5 | 2.22 | 1.97 | 0.25 |
| 1.625 | 2.5 | 1.875 | 2.5 | 2.345 | 2.095 | 0.25 |
| 1.75 | 2.625 | 1.906 | 2.531 | 2.471 | 2.221 | 0.25 |
| 1.875 | 2.75 | 1.906 | 2.531 | 2.595 | 2.345 | 0.25 |
| 2 | 2.875 | 1.937 | 2.562 | 2.721 | 2.471 | 0.25 |
| 2.125 | 3 | 1.937 | 2.562 | 2.846 | 2.596 | 0.25 |
| 2.25 | 3.25 | 2 | 2.75 | 3.096 | 2.796 | 0.25 |
| 2.375 | 3.375 | 2.031 | 2.781 | 3.221 | 2.921 | 0.25 |
| 2.5 | 3.5 | 2.031 | 2.781 | 3.347 | 3.047 | 0.25 |
| 2.625 | 3.687 | 2.125 | 2.875 | 3.502 | 3.202 | 0.25 |
| 2.75 | 3.812 | 2.25 | 3 | 3.627 | 3.327 | 0.281 |
| 2.875 | 4 | 2.25 | 3 | 3.772 | 3.442 | 0.281 |
| 3 | 4.125 | 2.25 | 3 | 3.897 | 3.567 | 0.281 |
| 3.125 | 4.25 | 2.25 | 3 | 4.022 | 3.692 | 0.281 |
| 3.25 | 4.375 | 2.25 | 3 | 4.147 | 3.817 | 0.281 |
| 3.375 | 4.5 | 2.25 | 3 | 4.272 | 3.942 | 0.281 |
| 3.5 | 4.625 | 2.25 | 3 | 4.397 | 4.067 | 0.281 |
| 3.625 | 4.75 | 2.25 | 3 | 4.522 | 4.192 | 0.281 |
| 3.75 | 4.875 | 2.25 | 3 | 4.647 | 4.317 | 0.281 |
