你現在的位置：首頁> 產品介紹> HC5620
HC5620

技術參數：
密封腔溫度：-30℃+205℃
線速度：≤25m/s
密封腔壓力：≤21bar
軸徑尺寸：24-140mm  (1"-5.5")

材料組合：
密封面：石墨，反應碳化硅，無壓碳化硅，碳化鎢
輔助密封：丁腈橡膠，氟橡膠，乙丙橡膠，全氟橡膠
彈簧及金屬件：304，316，哈氏合金

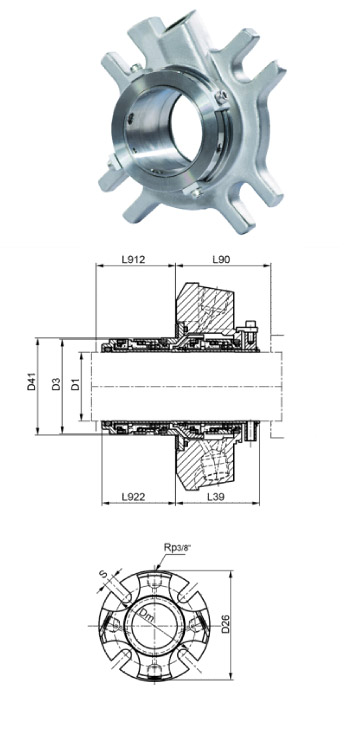

5620 Dimensions(Inch)
D1 D3 D41Min D41Max L39 L90 L922 L912 D26 S Dm
1.000 1.564 1.625 1.889 1.954 2.000 1.751 1.876 4.000 0.525 2.806
1.125 1.689 1.750 2.015 2.062 2.125 1.789 1.914 4.125 0.525 2.933
1.250 1.812 1.875 2.294 2.062 2.125 1.789 1.914 4.250 0.525 3.213
1.375 1.939 2.000 2.421 2.062 2.125 1.789 1.914 4.375 0.525 3.338
1.500 2.187 2.250 2.680 2.125 2.187 1.870 1.995 4.875 0.525 3.599
1.625 2.312 2.375 2.812 2.125 2.187 1.870 1.995 5.000 0.562 3.766
1.750 2.405 2.480 2.918 2.125 2.187 1.870 1.995 5.250 0.562 3.872
1.875 2.549 2.625 2.918 2.125 2.187 1.870 1.995 5.250 0.562 3.875
2.000 2.637 2.750 3.015 2.312 2.375 2.042 2.167 5.500 0.562 4.000
2.125 2.798 2.875 3.360 2.312 2.375 2.042 2.167 5.859 0.687 4.469
2.250 2.923 3.000 3.485 2.312 2.375 2.042 2.167 6.500 0.687 4.566
2.375 3.048 3.125 3.610 2.466 2.825 2.079 2.204 6.500 0.687 4.719
2.500 3.301 3.375 3.891 2.562 2.625 1.982 2.107 6.750 0.687 5.000
2.625 3.551 3.625 4.062 2.500 2.562 2.094 2.219 6.750 0.687 5.170
2.750 3.551 3.625 4.062 2.500 2.562 2.094 2.219 6.750 0.687 5.170
2.875 3.614 3.750 4.186 2.500 2.562 2.094 2.219 7.000 0.687 5.312
3.000 3.864 4.000 4.469 2.562 2.625 2.032 2.157 7.750 0.812 5.720
3.125 4.022 4.125 4.600 2.562 2.687 2.125 2.250 7.875 0.812 5.845
3.250 4.022 4.134 4.600 2.510 2.635 2.177 2.302 7.437 0.812 5.845
3.375 4.246 4.375 4.850 2.562 2.687 2.125 2.250 8.125 0.812 6.095
3.500 4.371 4.500 4.975 2.562 2.687 2.125 2.250 8.250 0.812 6.220
3.625 4.500 4.625 5.100 2.562 2.687 2.125 2.250 8.375 0.687 6.250
3.750 4.625 4.724 5.199 2.562 2.687 2.125 2.250 8.750 0.687 6.770
3.875 4.750 4.875 5.375 2.562 2.687 2.125 2.250 8.750 0.812 6.636
4.000 4.875 5.000 5.500 2.562 2.687 2.125 2.250 9.000 0.812 6.761
4.125 5.000 5.125 5.625 2.562 2.687 2.125 2.250 9.000 0.812 6.886
4.250 5.125 5.250 5.750 2.562 2.687 2.125 2.250 9.250 0.812 7.011
4.500 5.375 5.500 6.000 2.562 2.687 2.125 2.250 9.500 0.812 7.261
4.750 5.625 5.750 6.313 2.562 2.687 2.125 2.250 10.375 0.812 7.574
5.000 6.125 6.760 7.260 3.043 3.168 2.473 2.598 12.000 0.812 10.000
5.250 6.375 7.010 7.510 3.043 3.168 2.473 2.598 12.250 0.812 10.250
5.500 6.625 7.500 8.000 3.043 3.168 2.473 2.598 12.667 0.937 10.500



5620 Dimensions(Inch)
D1 D3 D41Min D41Max L39 L90 L922 L912 D26 S Dm
24 39.7 41.3 48.0 49.6 50.8 44.5 47.7 101.6 13.3 71.2
25 39.7 41.3 48.0 49.6 50.8 44.5 47.7 101.6 13.3 71.2
28 42.9 44.5 51.2 52.4 54.0 45.4 48.6 104.8 13.3 74.5
30 44.5 46.1 56.5 52.4 54.0 45.4 48.6 108.0 13.3 79.9
32 46.0 47.6 58.3 52.4 54.0 45.4 48.6 108.0 13.3 81.6
33 49.3 50.8 61.5 52.4 54.0 45.4 48.6 111.1 13.3 84.8
35 49.3 50.8 61.5 52.4 54.0 45.4 48.6 111.1 13.3 84.8
38 55.5 57.2 68.1 54.0 55.5 47.5 50.7 123.8 13.3 91.4
40 58.7 60.3 71.4 54.0 55.5 47.5 50.7 127.0 14.3 95.7
43 61.1 63.0 74.1 54.0 55.5 47.5 50.7 133.4 14.3 98.4
45 61.1 63.0 74.1 54.0 55.5 47.5 50.7 133.4 14.3 98.4
48 64.7 66.7 74.1 54.0 55.5 47.5 50.7 133.4 14.3 98.4
50 67.9 70.0 76.6 58.7 60.3 51.9 55.0 139.7 14.3 101.6
53 71.1 73.0 85.3 58.7 60.3 51.9 55.0 148.8 17.4 113.5
55 72.9 75.0 85.3 58.7 60.3 51.9 55.0 148.8 17.4 113.5
58 74.2 76.2 88.5 58.7 60.3 51.9 55.0 165.1 17.4 116.0
60 77.4 79.4 91.7 62.6 64.2 52.8 56.0 165.1 17.4 119.9
63 83.8 85.7 98.8 65.1 66.7 50.3 53.5 171.5 17.4 127.0
65 83.8 85.7 98.8 65.1 66.7 50.3 53.5 171.5 17.4 127.0
68 90.2 92.1 103.2 63.5 65.1 53.2 56.4 171.5 17.4 131.3
70 90.2 92.1 103.2 63.5 65.1 53.2 56.4 171.5 17.4 131.3
75 98.1 101.6 113.5 65.1 66.7 51.6 54.8 196.9 20.6 145.3
80 102.2 105.0 116.8 63.8 66.9 55.3 58.5 188.9 20.6 148.5
85 107.9 111.1 123.2 65.1 68.3 54.0 57.2 206.4 17.4 154.8
90 114.3 117.5 129.5 65.1 68.3 54.0 57.2 212.7 17.4 158.6
95 117.5 120.0 132.1 65.1 68.3 54.0 57.2 222.3 20.6 172.0
100 123.8 127.0 139.7 65.1 68.3 54.0 57.2 228.3 20.6 171.7
105 127.0 130.2 142.9 65.1 68.3 54.0 57.2 238.6 20.6 174.9
110 136.5 139.7 152.4 65.1 68.3 54.0 57.2 241.3 20.6 184.4
115 136.5 139.7 152.4 65.1 68.3 54.0 57.2 241.3 20.6 184.4
120 142.9 146.1 160.4 65.1 68.3 54.0 57.2 263.5 20.6 192.4
125 155.6 171.7 184.4 77.3 80.5 62.8 66.0 304.8 20.6 254.0
130 161.9 178.1 190.8 77.3 80.5 62.8 66.0 311.2 20.6 260.4
135 168.3 190.5 203.2 77.3 80.5 62.8 66.0 322.3 23.8 266.7
140 168.3 190.5 203.2 77.3 80.5 62.8 66.0 322.3 23.8 266.7
